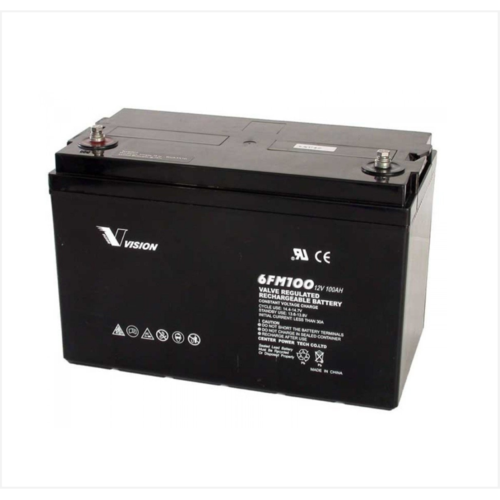

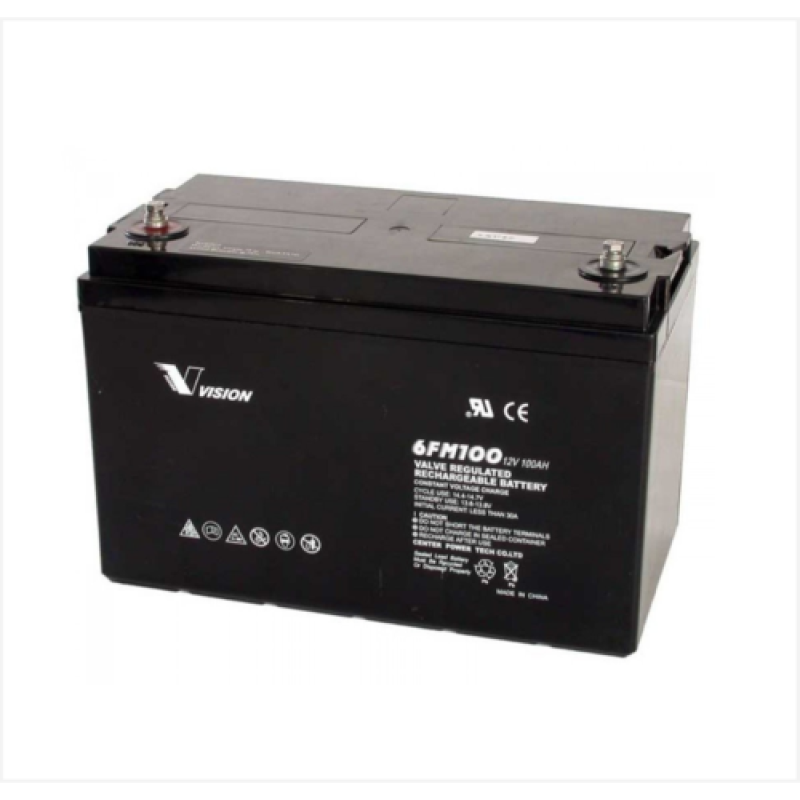

VISION DEEP CYCLE AGM BATTERY, 12V, 100AH

The Vision Deep Cycle AGM battery is a 12V, 100Ah rechargeable battery that utilizes Absorbent Glass Mat (AGM) technology. This technology allows for efficient gas recombination of up to 99%, which makes the battery maintenance-free and eliminates the need for adding water or performing other electrolyte maintenance.

The battery is designed to be completely sealed, which makes it leak-proof and usable in any position. In the event of accidental overcharging, the battery has special one-way valves that allow hydrogen and oxygen gases to escape, preventing excessive pressure build-up.

The computer-designed lead, calcium tin alloy grid provides high power density, allowing for long service life in float or cyclic applications. The battery has a low self-discharge rate, which helps to maintain its charge over time.

The Vision Deep Cycle AGM battery is a UL-recognized component and is not restricted for air transport, complying with IATA/ICAO Special Provision A67. It can be mounted in any orientation, providing flexibility in installation.

Performance Characteristics

Nominal Voltage: 12V

Number of cell 6

Nominal Capacity 77oF(25oC)

5 hour rate: (17.4A, 10.5V) 87.0Ah

3 hour rate: (26.6A, 10.5V) 79.8Ah

1 hour rate: (65.2A, 9.6V) 65.2Ah

Internal Resistance

Fully Charged battery:  25°C 5.7mOhms

Self-Discharge:3% of capacity declined per month at 20°C(average)

Operating Temperature Range

Discharge: -20~60°C

Charge: -10~60°C

Storage: -20~60°C

Max. discharge current: 25°C 900A(5s)

Short circuit current: 2100A

Charge methods: Constant Voltage Charge 25°C

Maximum charging current: 30A

Temperature compensation -30mV/°C

Temperature compensation -20mV/°C

Physical properties

Dimensions (L x W x H): 33 x 17 x 215mm

Total height: 220

Approx. weight: 30 kg
